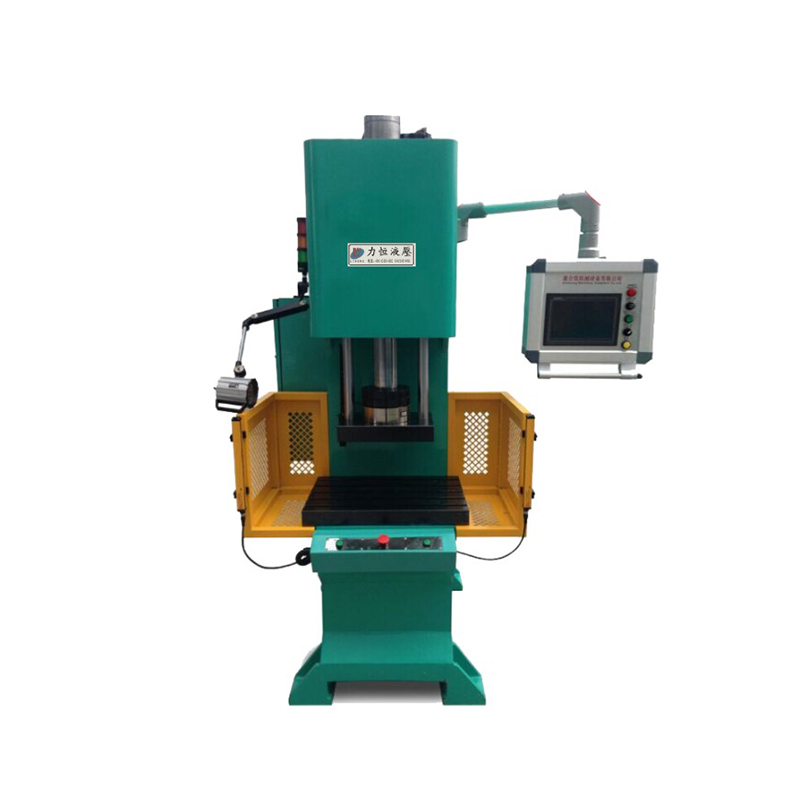

C type hydraulic servo press machine
C type hydraulic servo press machine
C type hydraulic servo press machine
1 / 8
C type hydraulic servo press machine
C type hydraulic servo press machine
Home> Products> Servo Press> C-type Servo Press> C type hydraulic servo press machine

C type hydraulic servo press machine

Payment Type: L/C,D/P,T/T
Incoterm: EXW
$8600 ≥1
Piece/Pieces
$11,300.00   —  $5,600,000.00 /Set

Product Description

Product Attributes

Brand: Shengshi

Machine Type: Hot Forging Hydraulic Press

System: Servo

Status: New

Place Of Origin: China

Core Selling Point: Automatic

Warranty Period: 1 Year

Out-of-warranty Service: Online Support

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Construction Works

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Mechanical Test Report: Provided

Core Components: Bearing, Gear, Pump, Engine

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,D/P,T/T

Incoterm: EXW

Packaging & Delivery

Selling Units:
Piece/Pieces

C-type machine product processing

Product Description

項目Project 單位 規格Specifications
Units LHE-3 LHE-5 LHE-10 LHE-15 LHE-20 LHE-30 LHE-50 LHE-80 LHE-100
主油缸壓力 Kn 30 50 100 150 200 300 500 800 1000
Main?cylinder?capacity
系統壓力 Mpa 13 13 13 18 18 21 21 21 21
System?pressure
最大行程 mm 150 150 150 250 250 250 300 300 300
Main?cylinder?stroke
開口高度 mm 250 350 350 400 400 400 450 450 450
Open?height
喉口深度 mm 150 150 150 150 150 180 180 200 200
Throat?depth
工作臺有效尺寸Effective size of workbench 左右（柱內）L-R mm 400 400 400 450 450 500 550 650 800
Working?table?size?available 前后（邊緣）F-B 300 300 300 350 350 400 450 550 600
固定工作臺距地面高度 mm 800 800 800 800 800 800 800 850 850
Height?of?fixed?working?table
主缸速度Master cylinder speed Fast forward mm/s 95 90 200 210 200 200 180 180 160
working 0 0 25 23 21 20 18 18 15
Fast backward 95 90 190 200 200 190 160 160 150
電機功率Main?motor?power Kw 2.2 3.75 3.75 3.75 3.75 5.5 5.5 5.5 5.5
機器重量（參考）Weight?(Approx) Kg 450 500 600 800 850 1200 2700 4500 6500
LHE Series Parameter Table
?
?
?
1. The solid open structure with integral welding can keep the machine body rigid enough while having the most convenient operating space.
2. Compact structure, stable operation, fast speed, high efficiency, low energy consumption and simple operation.
3. Imported hydraulic, electrical components and seals are used, with long service life.
4. Pressure, stroke, pressure holding, etc. can be adjusted according to the requirements of the pressing process.
5. Two-hand operation, with emergency stop and inching functions, safe and efficient.
Scope of application
1. Riveting, stamping, forming, shallow drawing, shaping, and pressure assembly of metal or non-metal parts.
2. Pressing of glasses, locks and hardware parts, electronic connectors, electrical parts, motor rotors, stator press-fitting, etc.
3. Especially suitable for Mobile phone button stamping, transformer shaping, motor assembly, axis, bearing pressing, etc.
?
Since its launch, this Servo Press has represented the Dongguan hydraulic press brand and is also the first choice for companies using hydraulic presses in Shenzhen.
?
You can send an email or leave a message to explain your needs, and we will recommend a Slider Type Servo Press machine for you based on the model and configuration requirements provided.
?
?
?
Machine flow chartWhy Choose Us
?
?
